VersiWall™ GP is an extremely versatile, easy-to-install and low maintenance modular vertical greening system which offers architects and developers a cost-effective solution to turn monotonous walls into aesthetically-pleasing living plant walls.

VersiWall® GP - Hy-Tex (UK) Ltd.

VersiWall® GP

Living Wall

VersiWall® GP

VersiWall™ GP is an extremely versatile, easy-to-install and low maintenance modular vertical greening system which offers architects and developers a cost-effective solution to turn monotonous walls into aesthetically-pleasing living plant walls.

Few living wall systems offer the versatility of the VersiWall™ GP hanging wall. At the heart of the system is the planting tray that fits either two plants in 4” nursery pots or direct planting.

VersiWall™ GP offers the flexibility to choose from several tray mounting options (propriety panels, weld mesh, rods or steel wire) to suit wall conditions and minimise wall penetrations, with 6 universal anchoring points on each tray to enable installation easily and safely by just one person.

VersiWall™ GP trays can also be arranged in a variety of horizontal and vertical spacing to provide flexibility in planting density and layout.

VersiWall™ GP trays can be individually easily replaced or removed for maintenance or design change, while anti-lift arms prevent inadvertent dislodgement of trays.

Irrigation pipes are concealed neatly at the rear between trays and each VersiWall™ tray has baffle to distribute water evenly and a covered water reservoir for healthy plant growth, with excess water flowing into underlying trays or discharging through drainage pipes.

VersiWall™ GP trays allow a wide choice of soil media to suit plant requirements and each tray holds 1.8l of soil, equivalent to the volume of a 150mm diameter pot.

VersiWall™ GP trays and panels are manufactured from UV-stabilised recycled polypropylene that meets requirements for international “Green Building” certification.

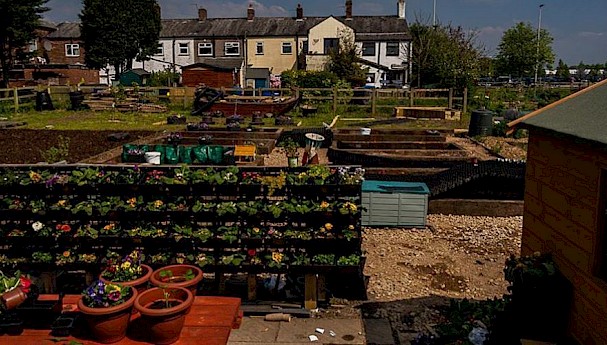

VersiWall GP featured at the RHS Chelsea Flower Show 2018 - winning a Gold Medal, and Best Space to Grow Garden, as part of the 'Urban Flow' garden exhibiton, where it was used to create an edible living wall.

Feature VersiWall® GP
Material Recycled Polypropylene (UV stabilised)
Size (mm) Tray: Overall 195 (W) x 207 (H) x 192 (D)

Nominal 200 (W) x 150 (H) x 195 (D)

Mounting Panel: Overall 418 (W) x 925 (H) x 22 (D)

Nominal 400 (W) x 900 (H) x 22 (D)

Planting Media Volume (l) ~ 1.8
Weight (kg/m²) Close Planting (~33 trays/m²) ~ 93

Open Planting (~ 22trays/m²) ~ 62

Vertical Distance between trays (mm)@150mm pitch@225mm pitch 0 (trays overlap)@225mm pitch 40
Biological / Chemical Resistance Unaffected by moulds and algae. Good resistance to alkali and bitumen


Load Testing

VersiWall trays supported on the propriatory Mounting Panel has been shown to be able to withstand over 260 kilograms force (2,550N)!

Features/Benefits

  • Creates aesthetically pleasing walls
  • Versatile
  • Trays can be individually changed
  • Easy to install
  • Possibility to create curved walls
  • UV Stabilised
  • Made from recycled plastic
  • Meets 'Green Building' certification
  • Fire resistant model available
  • Anti-lift arm prevents the planter being dislodged
  • Baffle plate prevents media entering irrigation
  • Water reservoir, means the soil does not dry as quick as other vertical walls
  • Choice of open spacing or closed
  • Holds 1.8L of soil per tray
