The market leading Terrastop™ silt fence range offers unrivalled performance in controlling pollution caused by silt laden construction site stormwater run-off.

Terrastop™ Silt Fences - Hy-Tex (UK) Ltd.

TerraStop™

Silt Fences

Terrastop™ Premium Silt Fence

Specialised silt fence fabric used as an entrenched interceptor fence to control pollution caused by silt laden construction site stormwater run-off.

The Problem

Many construction, forestry and farming activities result in disturbed or bare ground that is vulnerable to weather erosion. The silt laden run-off, plus site debris and other pollutants, often contaminates surrounding land, rivers, streams, lakes and drains - resulting in significant environmental diffuse pollution and potentially costly fines.

However, due to the on-going nature of such work, it is generally not possible to protect exposed surfaces until the project is complete. So stormwater from such sites represents a major non-point source of diffuse water pollution in the UK.

The Solution

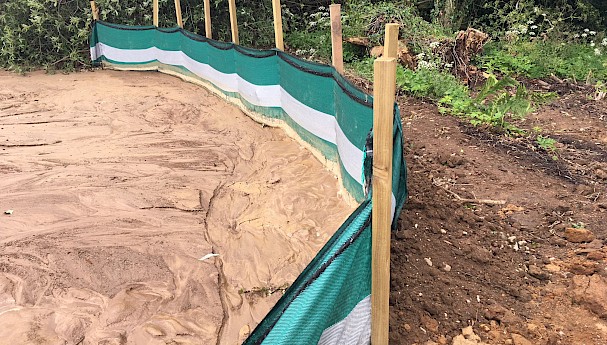

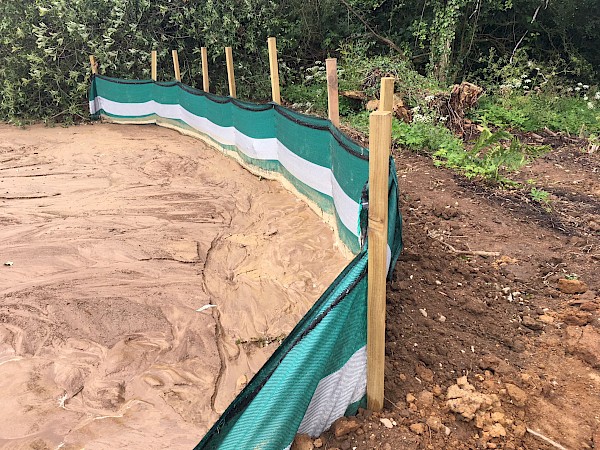

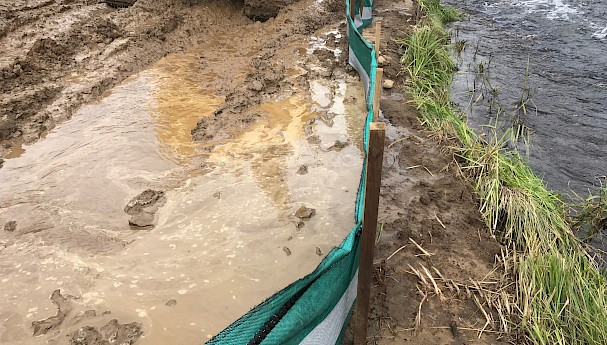

Terrastop™ Premium is a special, high quality, permeable, technical filter fabric for stormwater surface runoff pollution management. Terrastop™ can be installed as an entrenched vertical entrapment fence, and is designed to intercept and detain stormwater run-off, trapping harmful silt through settlement and filtration before it leaves the site.

The benefits of the silt fence are increasingly becoming recognised in Britain: The Environment Agency/SEPA Pollution Prevention Guidelines (PPG5) now recommend the use of silt fences to reduce silt transport from exposed ground and stock piles; and research at The James Hutton Institute, using Terrastop silt fencing, demonstrated that even after post-harvest contour grubbing of potato fields an estimated 80 tonnes of soil containing 60-70 kg phosphate-P contaminants was trapped from a 17ha field [Dr Andy Vinten].

Silt fences have also been used extensively in other countries for many years, and their proven performance (Intercepting up to 86% of suspended solids [Horner et al. 1990]) has made them a standard Best Management Practice on a diverse range construction projects, while in-depth research and practical experience has identified the most important characteristics for effective results.

Kirsty Liddon’s Edinburgh University Dissertation “Prevention of Diffuse Pollution from Active Forestry Harvesting Sites:” concluded “the Hy-Tex [Terrastop Premium] material appears to be the most suitable material for use as sediment retention as it has the most consistent performance between differing soil types retaining the highest volumes of sediment for both gley and peat solutions.”

Feature Terrastop™ Premium (Terrasilt GR180) Terrastop™ HighFlow
Tensile Strength: 22kN/m 32kN/m
Puncture Resistance (CBR): 3,500N 3,700N
Permeability
(ISO 11058):
21 l/m².s (45 l/m².s to AS 3706.9) 190 l/m².s
Opening Size
(ISO 11058):
180µm 320µm
Weight: 200g/m² 145g/m²
Material: 1000µ thick, green/black, 400kLy UV stabilised, polypropylene, tear resistant non-fraying edges. 500µ thick, green/black, 450kLy UV stabilised, polyethylene, tear resistant non-fraying edges.
Roll Size: 0.75 x 100m 1.00 x 100m
Other Key Features: Fibrous weft yarn, burial depth and max silt height marker lines, top tying-off + tensioning ribbon.

Features/Benefits

  • Burial depth and max silt height marker lines
  • Top tying-off + tensioning ribbon
  • Fibrous weft yarn provides excellent filtration (Premium)
  • Proven performance
  • Traps harmful silt via settlement and filtration
  • Purpose designed for application
  • High tensile strength
  • UV Stabilised
  • Non fraying reinforced edges
  • High quality weave
  • Exceptional balance of permeability vs filtration

Enquiry Basket

Terrastop™ Silt Fences

Clear

Guidance

  • Posts, nails and washers also available (see below)
  • We suggest maximum 1.50m post spacing
  • We suggest minimum 3 Nails + washers per post
Terrastop™ Silt Fence supplied by Hy-Tex (UK) Ltd. Tel: 01233 720097
